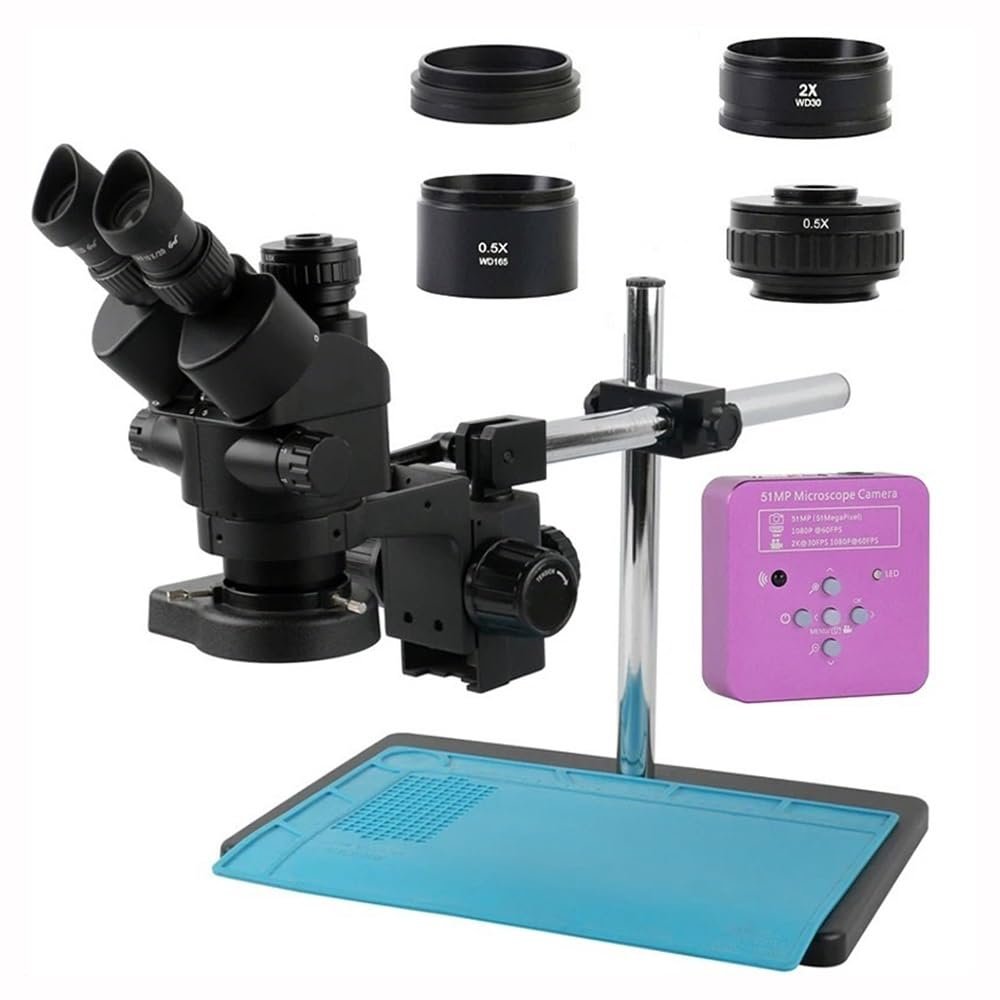

ZTBH Microscope Accessories Kit 2K 4K 48MP 51MP HDMI USB 3.5-90X Zoom Trinocular Stereo Microscope Camera for Soldering PCB Jewelry Appraisal Carving Microscope Slides (Color : 51MP 2K HDMI USB)

Description

• 2K 4K 48MP 51MP HDMI USB 3.5-90X Zoom Trinocular Stereo Microscope Camera. according to your choice.
• Fit For PCB Soldering Phone Repair PCB inspection. A variety of options are available, please refer to the pictures, specific product options are based on your choice.
• Professional and practical design with beautiful appearance, easy to carry and use.
• Usually used in laboratories, schools, teachers, sample observation, eyepiece protection, etc.

Features:
7X to 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance

Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-160mm
36MP 2K 4KHDMI USB Feature:
High Quality, High Resolution, Clear Images
36.0MP 1/2.33 Inch big sizeCMOS sensor
TF Card Video Recorder
Photo Model / Video Model
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, NegativeSupply USB2.0,HDMI HD video,Two output ports
Specification:
Model: Camera with HDMI USB2.0 two output
Image sensor: 36 megapixel sensor
Pixel size:1.335m
