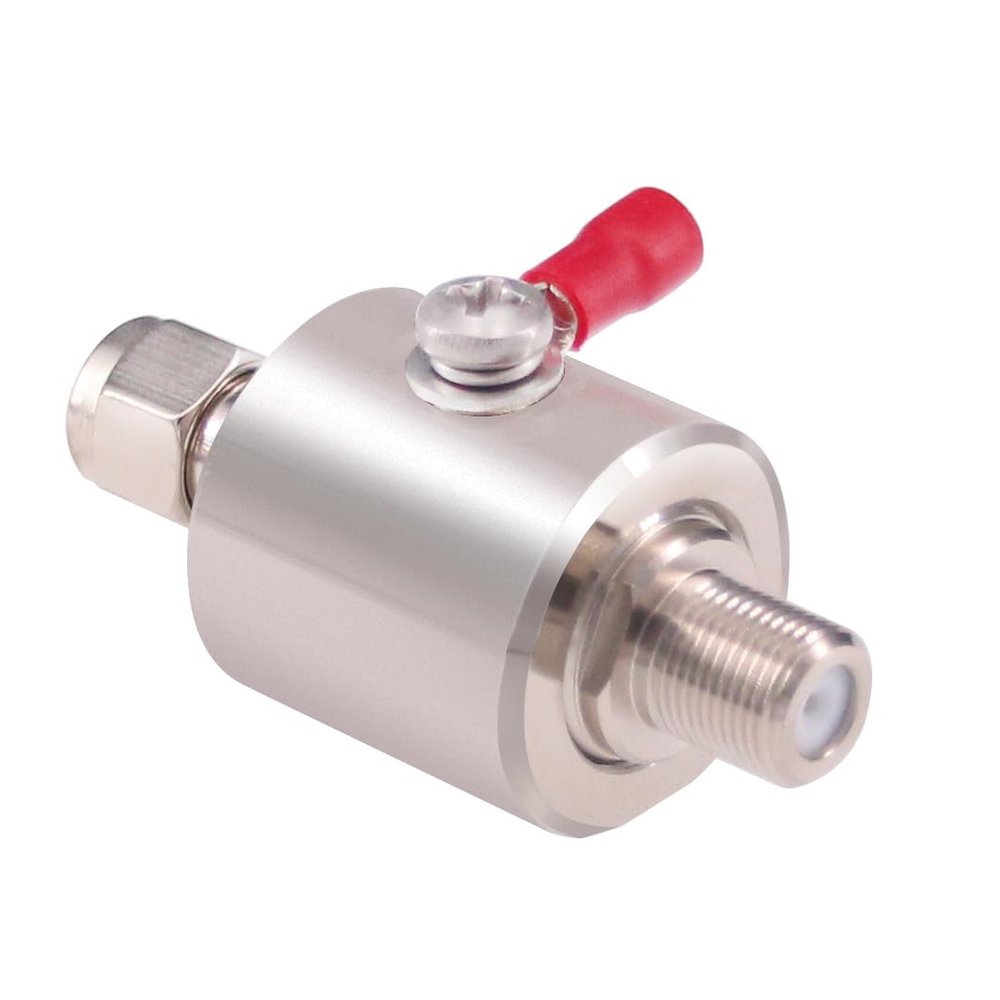

Yuelulala 1pc Lightning Arrestor F Type Lighting Protection Device F Male to Female Connector DC-1Ghz 75 Ohms(L08)

Description

• Lightning Arrestor F Male to F Female Connectors
• Low Loss and VSWR and 75 Ohms Impedance
• Operating Frequency DC-1 GHz, DC Pass for Remote Powering
• Protect your amplifier system from lightning strikes by installing lightning arrestor between amplifier and outdoor antenna
• Used for CCTV camera, video system, Ham radio gear, CB antenna, two-way radio, scanners and more

It has standard 75 Ohm with F-Male to F-Female coaxial connectors.
It is a coaxial F Surge Protector, operates over the frequency range of 0-1 GHz.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass)
It has a replaceable Gas Discharge Element with High Surge Power Capability and Bi-directional Protection ( 90V Gas tube)
Protect your amplifier and boosted devices from power surges typically caused by lightning strikes to outdoor antennas.
Material:
Body: brass nickel plated
Pin: Body brass gold plated
Insulator: Teflon(PTFE)
Specifications: Connectors: F Male to F Female
Impedance: 75 ohm, specifically for 75 ohm systems
VSWR: 1.2
Insertion Loss: 0.3dB
Frequency Range: DC - 1 GHz
Temperature range: -40C to +85 C
Insulation Resistance: 5000M Durability: 500 cycles
Contact Resistance: Center conductor 1.5m, Outer conductor 1m
Package Include:
1pc F Male to Female Lightning Arrestor surge protector
