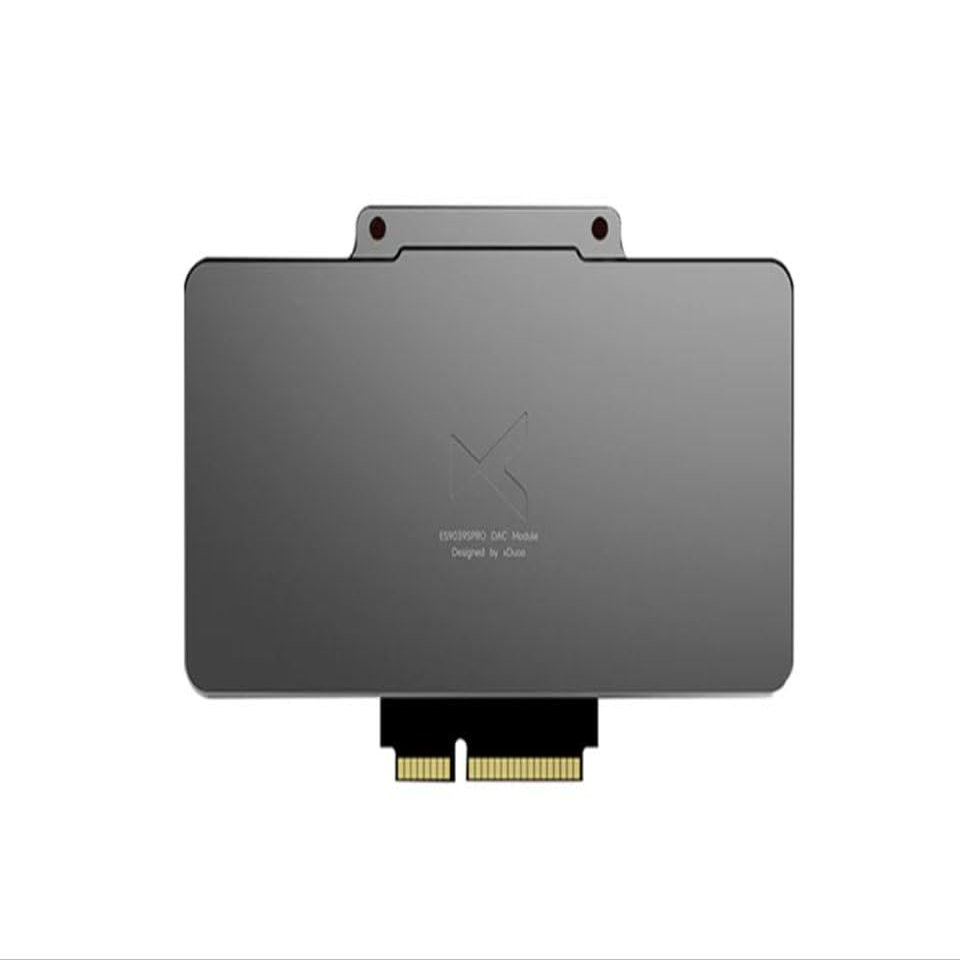

XDUOO ES9039SPRO DAC Card for XD05 Pro & TA32

Description

• Sound type of DAC card. The ES9039SPRO DAC card is characterized by a grand soundstage extremely rich details, very low distortion, and high-fidelity restoration of music playback, it is particularly suitable for classical music and can currently be installed on XDO5PRO and TA-32 for use.
• ES9039SPRO SUITABLE FOR CLASSICAL MUSIC.

ES9039SPRO DAC Parameters lN

XD05PRO
Unbalanced Output Parameters:
Output Power:
2000mW (32THD+N<1%)
2000mW (300THD+N<1%)
Output lmpedance: 0.2
Peak Voltage: 23.8Vp-p(TUBRO)
Frequency Response: 20Hz~20kHz(0.5dB)
Crosstalk: 72dB
THD+N: 0.0007%
SNR: 120dB

Balanced Output Parameters:
Output Power:
2000mW (32THD+N<1%)
930mW (32THD+N<1%)
Output Impedance: 0.4
Peak Voltage: 42.7Vp-p (TUBRO)
Frequency Response: 20Hz~60kHz(0.5dB)
Crosstalk: 105dB
THD+N: 0.0007%
SNR: 120dB

AUX OUT Parameters:
Output: 2.0V
THD+N: 0.0008%
SNR: 120dB
Crosstalk: 96dB

BAL-LO Parameters:
Output Level: 4.0V
THD+N: 0.0005%
SNR: 128dB
Crosstalk: 100dB

TA-32:
Unbalanced Output Parameters:
Output Power: 2300mW
Frequency Response: 20Hz~60kHz(0.5dB)
Crosstalk: 75dB
SNR: 116dB
THD+N: 0.01%

Balanced Output Parameters:
Output Power:3000mW
Frequency Response: 20Hz~60kHz(0.5dB)
Crosstalk:104dB
SNR: 118dB
THD+N: 0.03%

AUX OUT Parameters:
Ouput Level: 2.0Vrms
Frequency Response: 20Hz~20kHz (0.5dB)
Crosstalk: 108dB
SNR:117dB
THD+N: 0.0007%

BAL-LO Parameters:
Output Level: 4.1Vrms
Frequency Response: 20Hz~20kHz (0.5dB)
Crosstalk: 113dB
SNR: 125dB
THD+N: 0.0006%
