TUOPUONE 10.1inch 1280800 Industrial HMI All-in-one Touch Display for Raspbery Pi, Supports Dual 4K HDMI Output, 10-Point Touch, Aluminum Alloy Case, Accessories Pack Only Withou Raspbery Pi

Description

• 10.1inch DSI touch screen, ten-point capacitive touch control. IPS display panel with hardware resolution of 1280800.
• Using optical bonding process to ensure clearer pictures and reduce light reflection. Toughened glass capacitive touch panel, hardness up to 6H.
• Dual 4Kp60 HDMI display output. Integrated 5-megapixel front camera.
• Supports Raspbery Pi 5/4 all-in-one installation. Directly drive the LCD by the DSI interface on the Raspbery Pi, with up to 60Hz refreshing rate.
• Supports Bookworm system without driver when used with Raspbery Pi. Supports software control of backlight brightness.
• Aluminum alloy case with passive cooling design. Embedded installation, compatible with VESA standard bracket installation.

Parameters
CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC, clocked at 2.4GHz
GPU: OpenGL ES 3.1 & Vulkan 1.0
CAM: Integrated 5-megapixel front camera
USB:
2 USB 2.0 ports, dual-layer Type A connector, each channel supporting up to 480Mbps
2 USB 3.0 ports, dual-layer Type A connector, each channel supports up to 5Gbps
ETH: Gigabit Ethernet
Wi-Fi: Dual-band 802.11ac Wi-Fi
BLE: Bluetooth 5.0/Bluetooth Low Energy (BLE)
HDMI: 2 standard HDMI ports, supporting 4K 60Hz
Memory: 64GB
Size: 10.1"
Resolution: 1280 x 800
Refresh Rate: 60Hz
Viewing Angle: 178
Max Brightness: 300cd/
Color Gamut: 50%NTSC
Backlight Adjustment: Software dimming

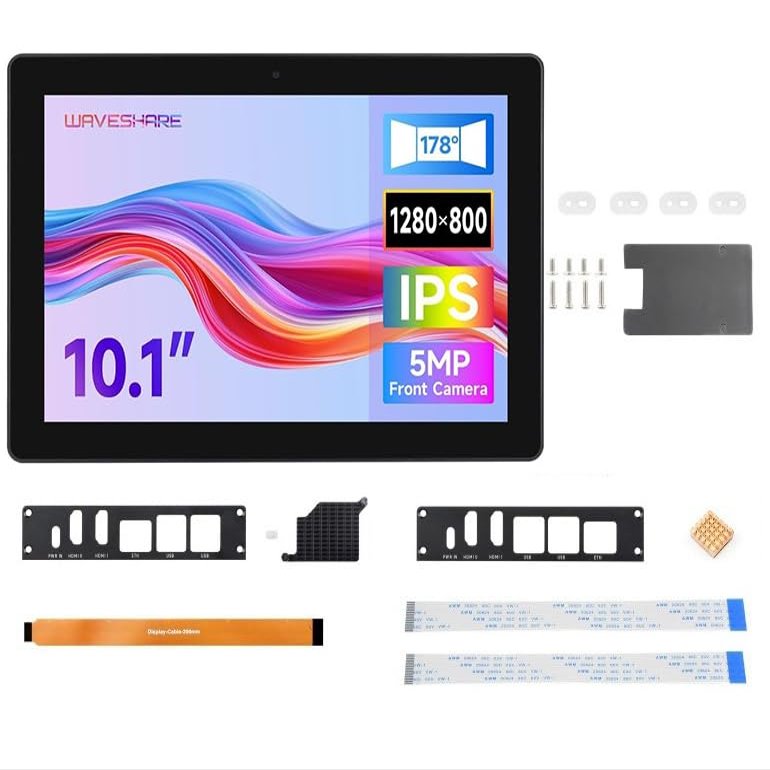

Package Content
1. 10.1inch touch display x1
2. Mounting buckle (4PCS) x1
3. Screws pack x1
4. 5W thermal pad 16*16*1mm x1
5. Pi5-HMI Accessories Pack:PI5 side panel x1
Aluminum alloy heatsink x1
DSI-Cable-12cm x1
Silicon button x1
Camera cable -15cm x1
6. Pi4-HMI Accessories Pack:PI4 side panel x1
Copper heatsink x1
FFC 15PIN 1.0 pitch ~160mm x2
