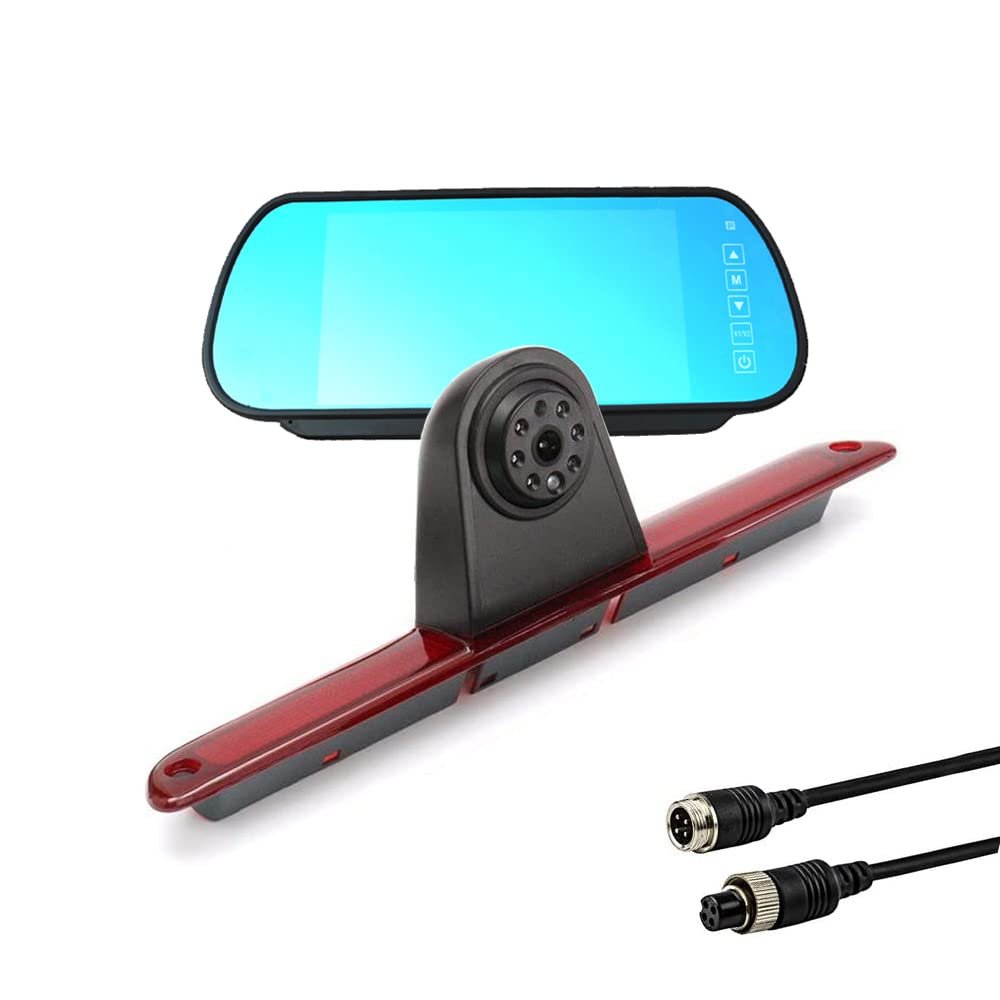

Sprinter Brake Light Backup Rear View Camera Kits with 7inch Monitor for Benz Sprinter/VW Crafter Van Backup Camera

Description

• Vehicle Backup Cameras Kit fit for Transporter Mercedes Benz/Dodge Sprinter W906 2006-2022/ VW C rafter 2006-2016 Vans
• Perfect companion product for sprinter backup camera. Video Output, V1/V2 Selecting. It Will Turn To Blue Screen When No Video Signal.
• 7 inch HD Monitor with 2 channels and the rearview image appears onto the screen automatically when you are parking car.
• 100% Waterproof with an IP68 rating to with stand all weather conditions which ensure long life time and stable work for years.
• Easy to operate,Screen rotatable,16:9/4:3. Comes with an IR remote controller for a easy operation.
• With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.
• We provided a professional instruction in package, Warranty 1 year provide tech support and replacement service

Application:
Mercedes/Dodge Sprinter (W906) from 04/2006-Now
VW C rafter (2EC1 / 2EC2 / 2EKE1 / 2EKE2 / 2EKZ) from 04/2006 -2016
Backup camera is designed to completely replace the vans third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.
Camera Specification:
Image sensor :1/3 Color CMOS
Resolution :756(H) X 504(V)
TV line :600TV lines
TV System :NTSC
Lens:2.5mm
Min illumination :0Lux (LED ON)
Viewing angle:170
Operation Temp. :-20~+70
White Balance :Auto
7inch Clip-on Monitor Specification:
Monitor size :7 inch(800 X 480)
Contrast :16:9
TV System :PAL/NTSC
Video input :AV1/AV2
Power : DC12V-24V
Brightness :400cd/
Installation way: Clip on your exist rear mirror (If you car doesn't install rear mirror ,please chose stand monitor)
In The Box
1 * Rear mirror monitor
1* Backup Camera
1*10M Extension Cable
1*Power Cable
1 * Manual
FQA
1. How to wire it ?
It is very easy for wiring.
Backup camera wiring: The camera is 4PIN plug ,please connect it directly to AV input wiring of monitor power cable.
Rear view monitor wiring :Red wire for power source, green wire for reverse, black for ground.
2. Is it ok if I want this rear view camera to always be on ?
Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter)that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
