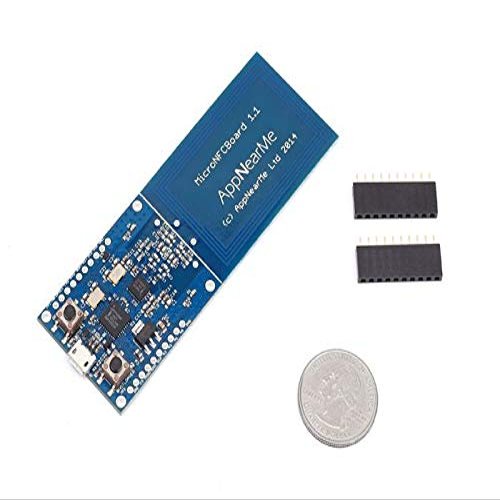

SeeedStudio Micro NFC Board

Description

Micro NFC Board from App Near Me Ltd is the perfect prototyping solution for NFC applications. It is shipped with an easy to use library enabling the following features:
NFC tag reading and writing
Android beam (P2P/SNEP)
Dynamic tag emulation
It can be used as a peripheral with any PC/Raspberry Pi (Python API) or microcontroller (Arduino and mbed libraries)
It is also mbed-enabled and the embedded ARM microcontroller can be reprogrammed using the mbed tools.
Additionally it can be used with the free AppNearMe app to easily control the board in real time.
Features:
NFC
Tag reading
Tag writing
Android beam (P2P/SNEP)
Tag emulation

NXP LPC11U34FHN33/421 MCU
48MHz, 10KB RAM, 48KB FLASH, 4KB EEPROM
USB Device, SPI, I2C, UART, 4xADC, GPIO

Prototyping form-factor
20-pin 0.1" pitch DIP package, 35x100mm
Splittable antenna
5V USB, 3.6-6V or 3.3V supply
Built-in USB drag 'n' drop FLASH programmer
Reset and bootloader enable push-buttons
2 LEDs on board

mbed.org Developer Website
Lightweight Online Compiler
High-level C/C++ SDK
Cookbook of published libraries and projects
Part List:
MicroNFCBoard X 1
Resources:
Website: http://www.micronfcboard.com
Python API: https://github.com/AppNearMe/micronfcboard-python
Arduino API: https://github.com/AppNearMe/micronfcboard-arduino-peripheral
mbed API: https://github.com/AppNearMe/micronfcboard-mbed-peripheral
mbed platform page: http://developer.mbed.org/platforms/MicroNFCBoard
For technical support and suggestions, please visit our forum .
