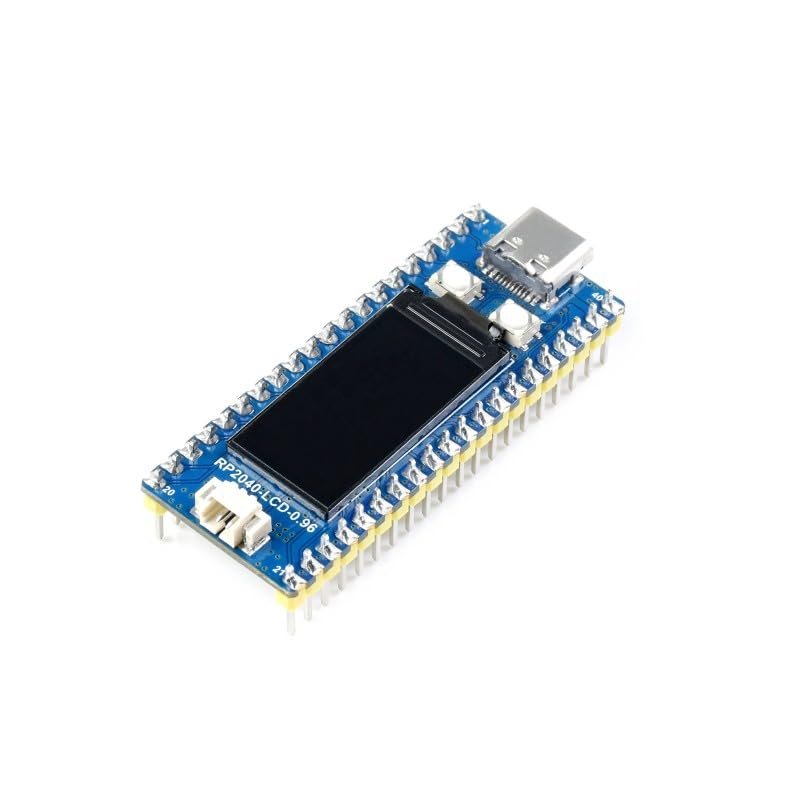

RP2040-LCD-0.96 a Pico-Like MCU Board Compatible with Raspberry Pi Pico Add-On Modules with LCD with pre-soldered Header

Description

• RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. 8 Programmable I/O (PIO) state machines for custom peripheral support
• It incorporates RPi's RP2040 microcontroller chip, as same as the one on RPi Pico. 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels.Accurate clock and timer on-chip
• For software development, either R Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.
• In additional, there're also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
• Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components).USB 1.1 with device and host support

Board Specifications
RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces.
It incorporates RPi's RP2040 microcontroller chip, as same as the one on RPi Pico.
For software development, either RPi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.
In additional, there're also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
Key features include:
RP2040 microcontroller chip designed by RPi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
0.96inch 16080 pixels 65K colorful IPS LCD display
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components)
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 multi-function GPIO pins
2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 Programmable I/O (PIO) state machines for custom peripheral support

Package Content
RP2040-LCD-0.96 with pre-soldered header x1
