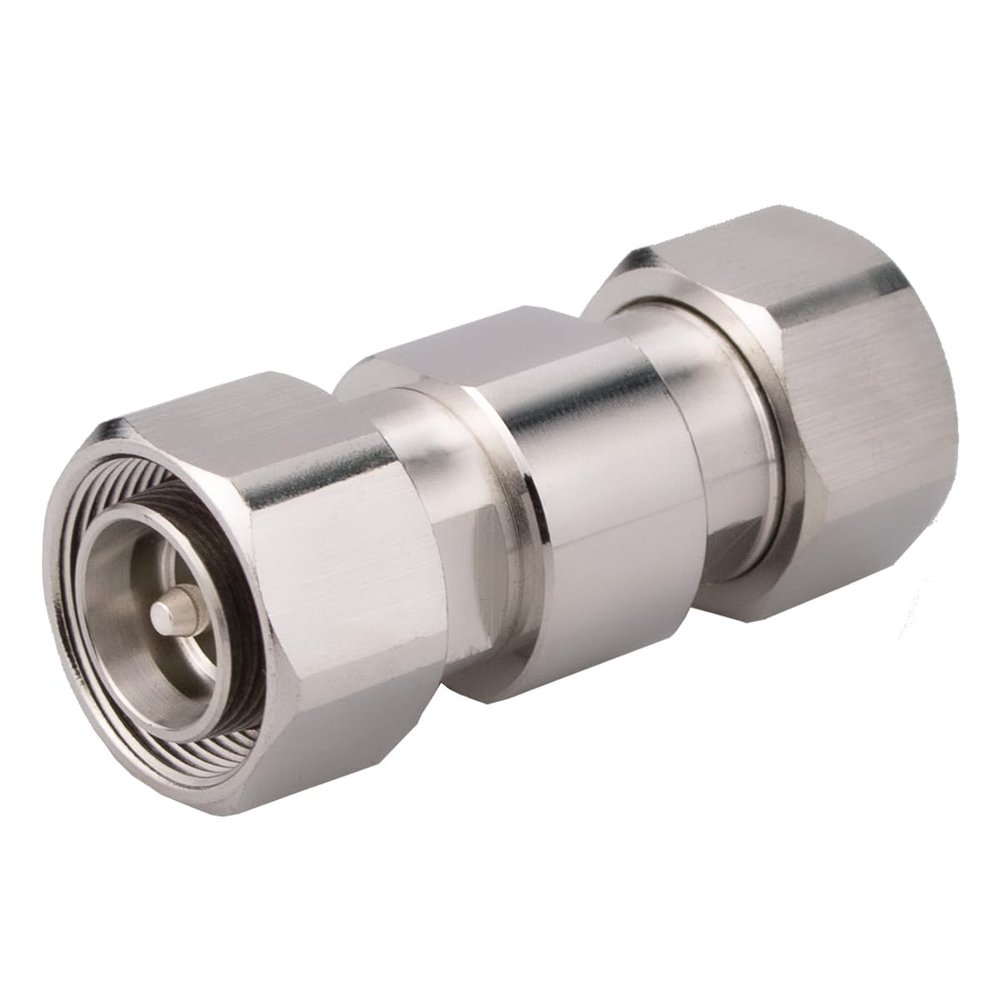

RFIOTASY 4.3/10 Mini Din Male to Male Adapter 4.3-10 MiniDin Male to Male Adaptor Low PIM 160 DBC

Description

• 1. 4.3-10 Mini Din male to male adaptor, used in Applications,Antennas,Wireless LAN Devices and so on.
• 2. Mini Din 4.3-10 male to male connector
• 3. Frequency Range:DC-6GHz VSWR 1.20 Insertion loss0.12dB PIM3 -160dBc,Impedance :50 Ohm
• 4.Material :Body Brass with Tri-Metal plated, insulator :PTFE,Center conductor Brass with Silver plated
• 5. Package include 1 piece 4.3/10 MiniDIN male to male adapter

4.3-10 Mini Din male to male adapter with Low PIM 160 dBc
1.Material data :
Body Brass Tri-Metal plated
Insulator: PTFE (teflon) Center conductor: Brass with Silver plated
2.Electrical data:
Frequency Range :DC-6GHz
VSWR 1.20
Insertion loss0.12dB
PIM3 -160dBc
Impedance :50 Ohm
Dielectric Withstanding Voltage 2000V RMS,50Hz,at sea level
Dielectric Resistance 5000M
Contact Resistance : Outer contact1m;Center Contact1.0m
