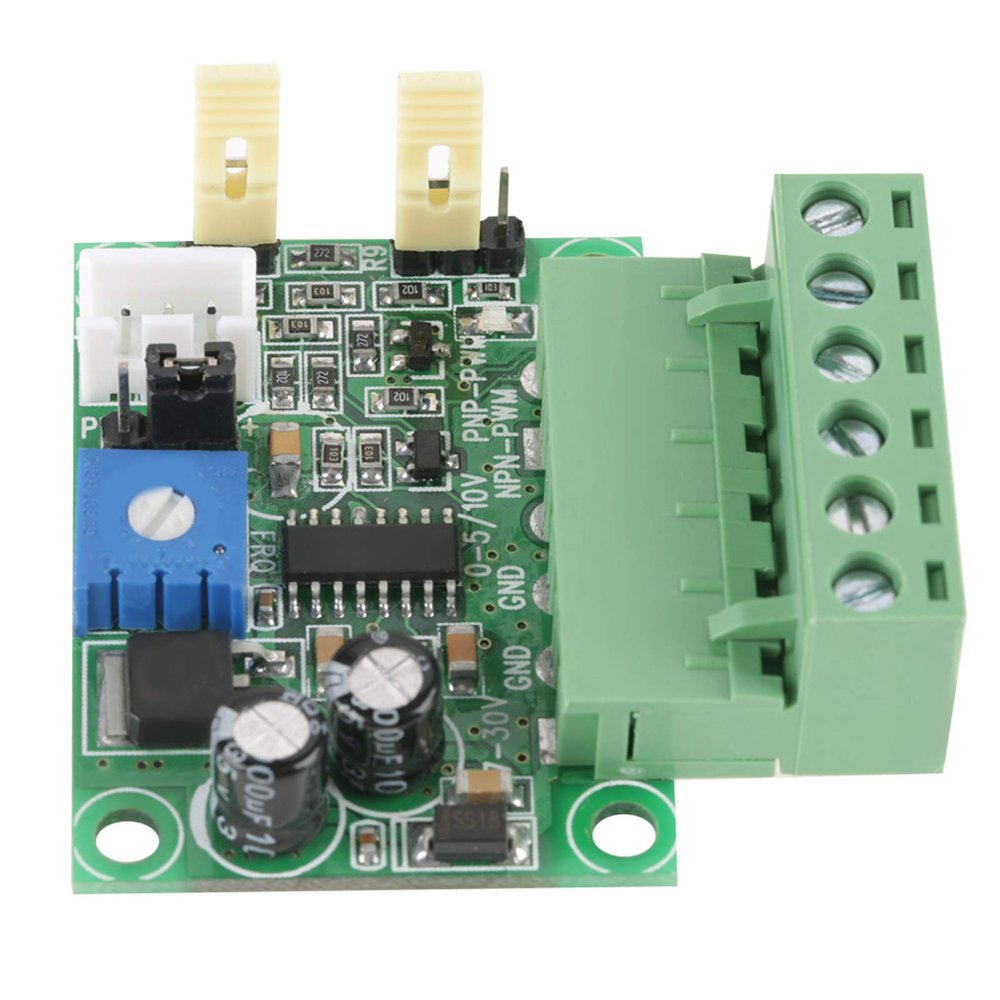

NDNCZDHC Voltage Frequency Converter,Voltage Converter,0-5V/0-10V Analog Input Voltage to 0-100% PWM Signal 2KHZ-20KHZ Converter Module

Description

• ADJUSTABLE FREQUENCY: The output PWM signal frequency is adjustable in the range of 2KHZ-20KHZ; there are 11 positions in total, corresponding to the maximum 20KHZ of 2KHZ, 4KHZ, 6KHZ, 8KHZ, and the default frequency is 2KHZ.
• INTRODUCTION: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM signal, the frequency range of PWM signal is 2KHZ-20KHZ, the maximum is 20KHZ, and the default minimum is 2KHZ.
• FUNCTION: The default function is to convert 0-10V to 0-100% 2KHZ PWM signal; the output frequency can be set by adjusting the potentiometer as needed, and the PWM signal and voltage can be proportional (positive phase output) or inverse (negative phase output).), used for applications such as PWM motor speed control interface circuit and instrument AD interface conversion that need to convert voltage into PWM signal.
• DUAL SIGNAL: There are two types of PWM signals, PNP-PWM output and NPN-PWM output; PNP-PWM output only has 5V level, NPN-PWM output has 5V and 24V level.
• SIGNAL DESCRIPTION: The NPN-PWM signal output supports common cathode connection and common anode connection, with two levels of 5V and 24V. When the output is 24V level, a 24V power supply is required. For PNP-PWM output, the level can only be 5V. Only common cathode connection can be used, and MCU is connected, etc.

Specifications:Type: Voltage to PWM signal module
Model: V-PWMInput Power Supply Voltage: 7-30V (recommend 15-30V DC)Input Power Supply Current: >200mASize: Approx. 45 x 47 x 18mm/1.8 x 1.9 x 0.7in
Weight: 20g(approx.)

Package Includes:1 x Converter Module
Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
