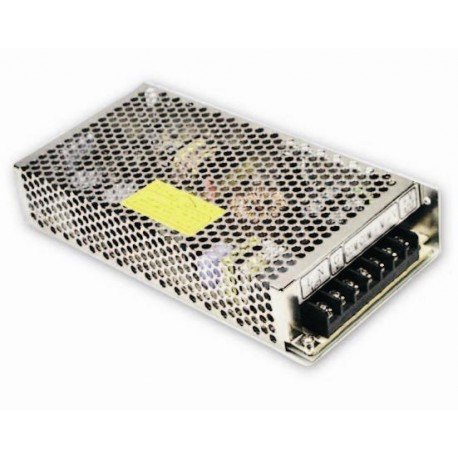

Meanwell RS-150-3.3 Power Supply - 100W 3.3V 30A

Description

• Output Voltage: 3.3V
• Approx. Wattage: 99W
• Protections: Short circuit / Overload / Over voltage
• Warranty: 3 Years Warranty

Features:
All using 105C long life electrolytic capacitors
Protections: Short circuit / Overload / Over voltage
Meet EMS EN50082-2/EN61000-6-2
heavy industry level (35~150W)
Withstand 300VAC surge input for 5 sec.
High operating temperature up to 70C
Withstand 5G vibration test
Miniature size, high power density
High efficiency, long life and high reliability
LED indicator for power on
100% full load burn-in test
Suitable for critical applications
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:88~264VAC, 125~373VDC
AC inrush current (max.):40A at 230VAC
DC adjustment range:10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection:110%~150% hiccup mode, auto-recovery
Over voltage protection:115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage:I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature:-25~+70C (refer to the derating curve for different models)
Vibration:10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards:UL60950-1, TUV EN60950-1 approved
EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)
Connection:Terminal block for input and output
Dimension (LxWxH):199x 98x 38
Case No.:902A
Packing:20pcs /15kg
