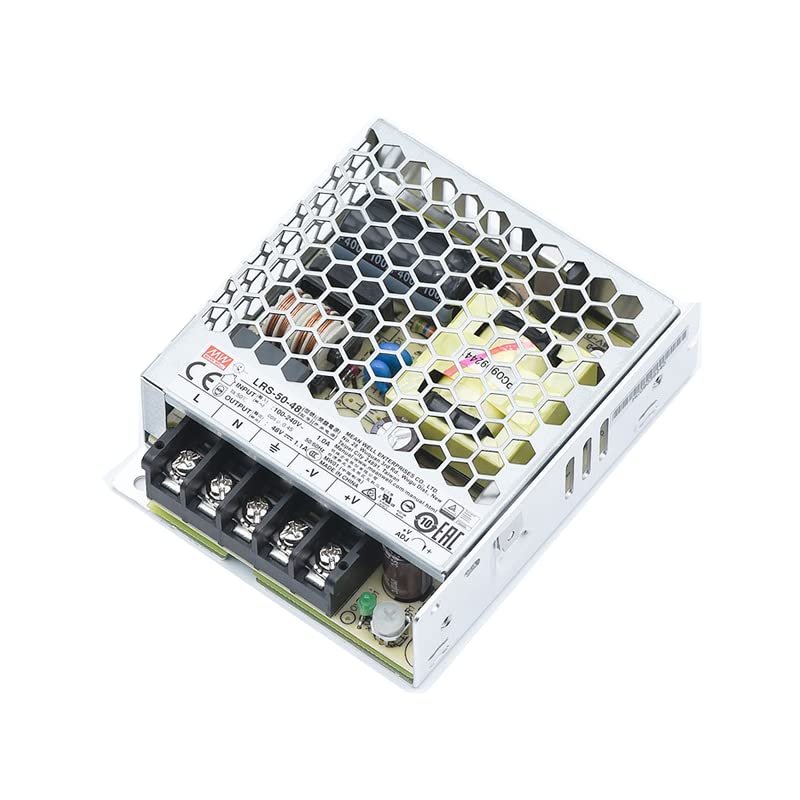

MeanWell LRS-50-48 Power Supply - 50W 48V

Description

• Output Voltage: 48V
• Approx. Wattage: 50W
• Protections: Short circuit / Overload / Over voltage
• Warranty: 3 Years Warranty

Features:
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:85~264VAC; 120~370VDC
AC inrush current (max.):Cold start, 45A at 230VAC
DC adjustment range:10% by potentiometer
Overload protection Range:110%~150%
Overload protection Type:Hiccup mode, auto-recovery
Over voltage protection Range:115%~135% rated output voltage
Over voltage protection Type:Shut down o/p voltage, re-power on to recover
Withstand voltage:3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature:-30~+70C (refer to output derating curve)
Safety standards:UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards:EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection:5P/9.5mm pitch terminal block
Dimension (LxWxH):99x 82x 30
