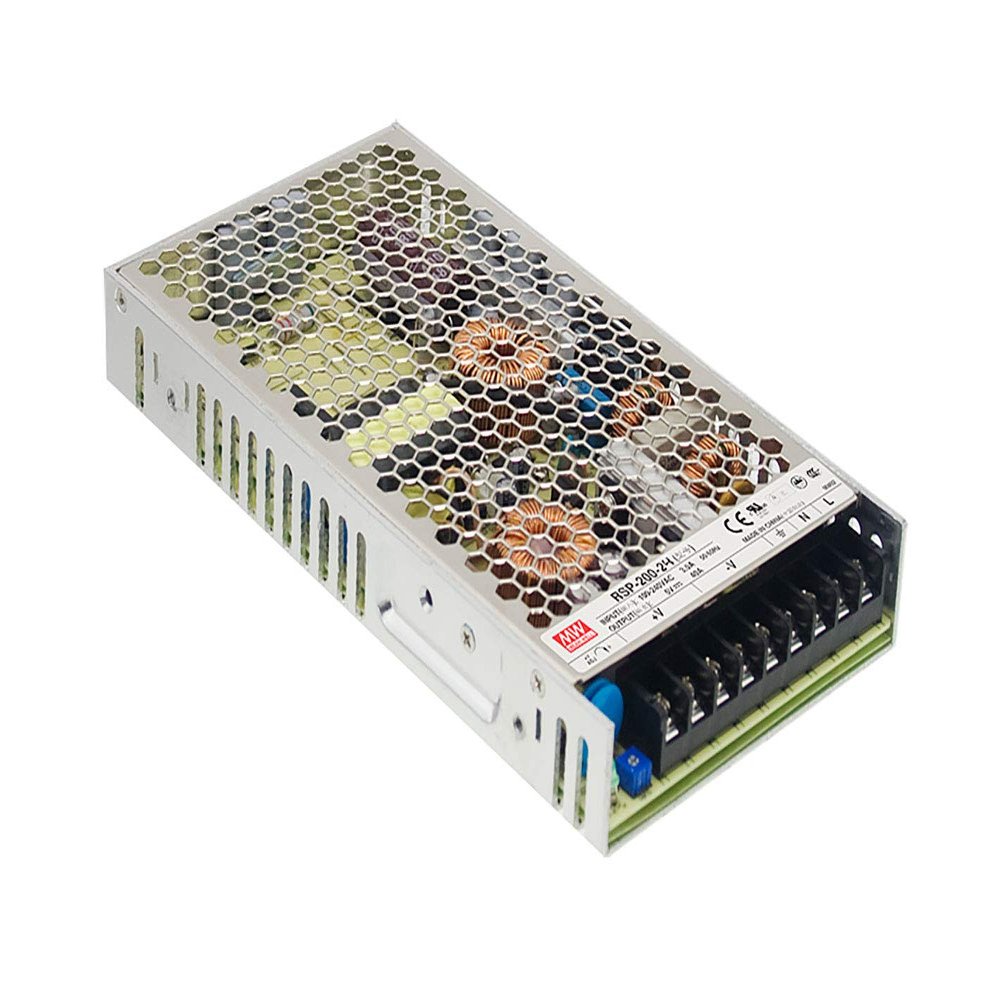

MEAN WELL RSP-200-24 AC-DC Switching Enclosed Power Supply Single

Description

• Primary output voltage (vdc): 24
• Output current (a): 8.4
• Maximum output power (w): 201.6
• Family: rsp-200
• Input voltage (vac): 88 to 264

AC to DC Switching Enclosed Power Supply Single Output with PFC function 24 Volts 8.4 Amps 201.6 Watts

Features:
Universal AC input/full range
Built in active PFC function
Protections: short circuit, over voltage, over temperature, overload
Cooling by free air convection
LED indicator for power on
3 year warranty

Specifications:
Output power (W): 201.6
Size (L x W x H) inches: 8.5 x 4.5 x 1.2
Ripple & noise (mV p-p): 150
Line regulation: 0.2 percent
Load regulation: 0.5 percent
Efficiency: 89.5 percent
Frequency range: 47-63 Hz
Voltage range: 88-264 VAC
Agency approvals: UL/CUL/TUV/CCC/CB/CE Input current (a): 3.5
Output connector Type: screw terminal block
Number of outputs: 1
Product Type: AC to DC power supply
Minimum isolation voltage: 3000V
Operating temperature-min (CEL): -30
Operating temperature-max (CEL): 70
Length (inch): 8.5
Width (inch): 4.5
Height (inch): 1.2
Color: silver
Type: auto switching
Style: enclosed

Usage Note: A minimum load is required for the power supply to function normally. Typical minimum loads for switching supplies are 10% of the maximum load current and usually one ampere, or less.
