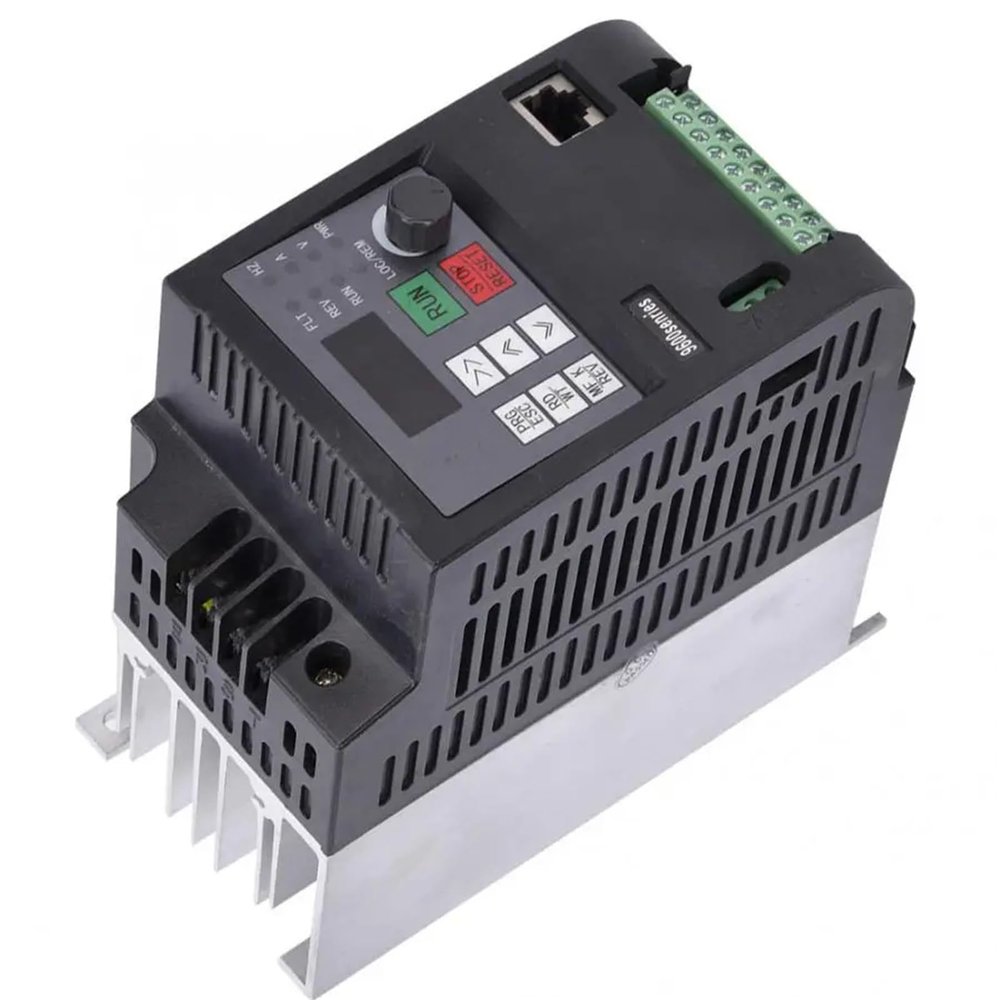

Inverter 1.5KW 2.2KW 220V Single Phase Input Three Phase Output Frequency Converter 220V Motor Speed Control Inverter 1Pcs(7.5kw-10HP)

Description

• Isolation Transformers

Isolation Transformers
220V single-phase input to 3-phase 220V output
1.This Serial model has 4-20ma or 0-10V analog Input Functio.
2.Support Pump 220V 3-Phases Motor, can connect pressure sensor for constant pressure control.
wiring diagram 220V 0.75KW-2.2KW
220V 0.75KW
220V 1.5KW
220V 2.2KW
Model NO.
WK-0007-M1T
WK-0015-M1T
WK-0022-M1T
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Three phase 0-220V 0-650Hz
Power
0.75KW/1HP
1.5KW/2HP
2.2KW/3HP
Rated current
3.7A
7A
10A
Shape size
155*82*135 mm
packing size
220*150*130 mm
Weight
1.2KG
wiring diagram 220V 4KW
220V 4KW
Model NO.
WK-0040-G1T
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Three phase 0-220V 0-650Hz
Power
4KW/5HP
Rated current
16A
Shape size
170*130*160 mm
packing size
225*190*230 mm
Weight
2KG
wiring diagram 220V 5.5KW-7.5KW
220V 5.5KW
220V 7.5KW
Model NO.
WK600-0055-G1T
WK600-0075-G1T
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Three phase 0-220V 0-650Hz
Power
5.5KW/8HP
7.5KW/10HP
Rated current
20A
30A
Shape size
220*152*179 mm
packing size
280*205*245 mm
Weight
3.3KG
Output Current : 4A/7A/10A/16A/20A/30A
Output Frequency : 0-600Hz
Model Number : WK600D/WK600
Output Power : 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw
Type : DC/AC Inverters
Weight : 2.2KG
Size : 220*150*175
Output Type : Triple
Input Voltage : Single phase 220v
Output Voltage : Three-phase 220V
Control Mode : Open loop vector control(SVC) V/F control
Communication : RS485
24V Output Voltage : Yes
10V Output Voltage : Yes
Relay output : Normally open and normally close
