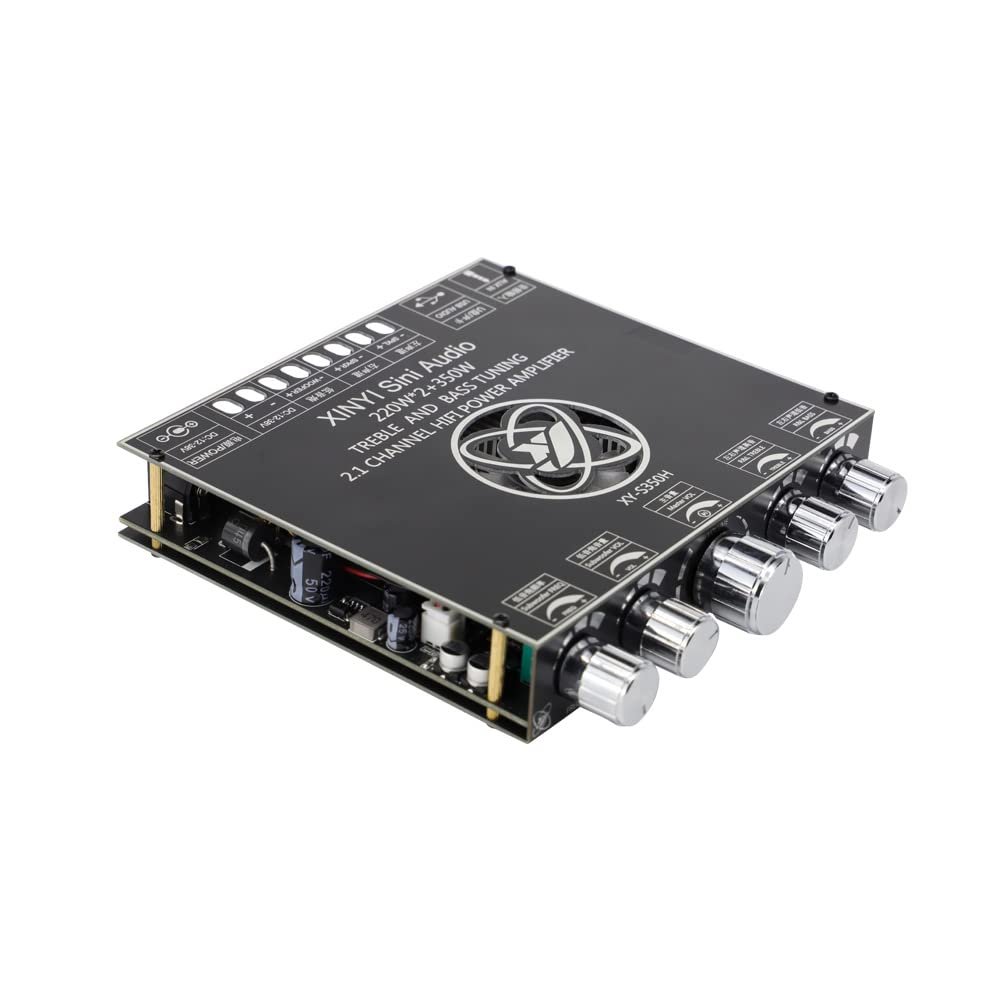

HIFIDIY LIVE XY-S350H 2.1 TPA3251D2 Bluetooth 5.0 2.1 Channel Power Audio Stereo Subwoofer Amplifier Board 220WX2+350W Treble Bass Note Tuning AMP 12V-36V

Description

• Note: The volume control adopts press on/off, pause/play, and 360 degree infinite adjustment volume. Supports 3 audio input modes: AUX input, Bluetooth input,U disk playback (APP connects to Bluetooth control).
• 1.Bluetooth name: Turn on your phone's Bluetooth and search for "XinYi" --> Connect "XinYi". 2.APP Download Mobile App market or App store Search"Sinilink" . 3.APP Usage: 1. Turn on the Bluetooth of the mobile phone and turn on the location positioning; 2. Enter the APP operation interface --> Click the yellow dot --> Click Bluetooth device --> Search Bluetooth --> Connect "Sinilink-APP"
• TPA3255 HIFI CHIPThe XY-S350H power amplifier board uses two TPA3255 power amplifier chips.Support wide voltage input:18-36V, power up to 220W*2+350W (PMPO).
• TREBLE & BASS CONTROLIf you are tired of an amplifier with only one volume knob, then you feel right, because you have further requirements for audio. By adjusting the high and low frequency knobs of the XY-S350H power amplifier board, you can make the sound more layered and make the bass more shocking.
• HIGH COMPATIBILITYThe DC adapters on the market (plug size 5.5mm*2.1mm) can basically meet the needs of the XY-S350H Bluetooth power amplifier board. If you don't have a DC plug, please don't worry, you can also directly connect the positive and negative poles of the wire to the power socket of the amplifier board.

PROTECTION FUNCTIONXY-S350H Bluetooth power amplifier board has multiple protection mechanisms to ensure its safe operation. With short circuit protection, undervoltage protection, overvoltage protection, clipping protection. IMPORTANT REMINDERthe working voltage of the power amplifier board must be above 18V. DC voltage lower than 18V will fail to start the power amplifier board. 1.Bluetooth version: 5.0 (without sunscreen, 15 meters). 2.Output channel: 2.1 channel. 3.Chip model: TPA3251D2*2. 1.Working mode: class D. 2.Static current: 60mA. 3.Work efficiency: 90%. 4.Audio input: support bluetooth, AUX analog signal, U disk / USB sound card. 5.MAX output power : 220W*2+350W. 6.Frequency response: 20Hz to 20KHz. 7.Working voltage: DC18V - 38V. 8.Recommended power voltage: DC24V. 9.Fit speaker parameters: 4-8 ohms. 10.Size: 130 mm * 116 mm * 27mm . 11.Net weight: about 370g
