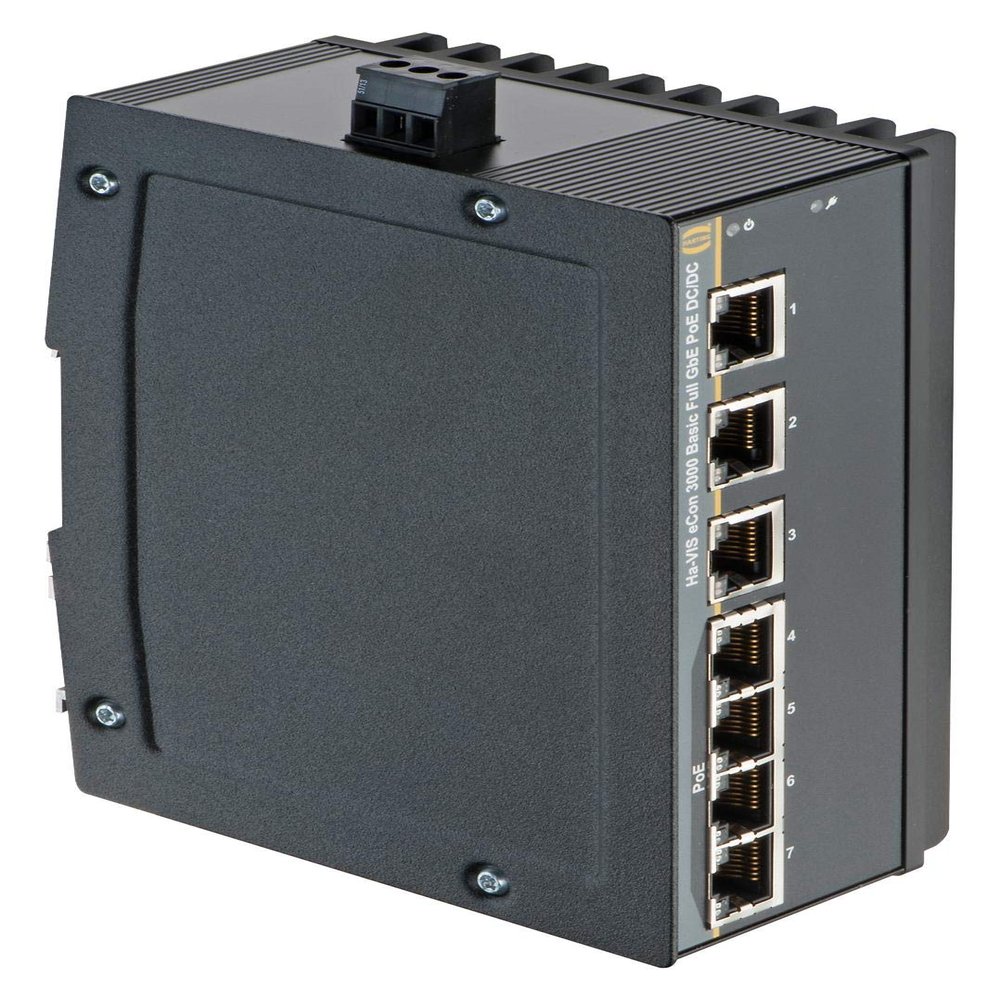

HARTING 24035070020 Switch, Ha-VIS eCon 3000, 7 Ports, Industrial, Unmanaged PoE Gigabit Ethernet, DIN Rail, RJ45 x 7

Description

This is a new Harting 5-port RJ45 Ha-VIS eCon 3050GBT-A-P Unmanaged Ethernet Switch with part number 24034050020. The Ha-VIS eCon 3000 Full Gigabit family of unmanaged Ethernet switches is equipped with up to 5 gigabit Ethernet ports and allows for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high bandwidth requirements. Features: Switches work as power sourcing equipment (PSE) and can supply up to 4 terminal devices via PoE+ (34.2 Watts per port) RJ45 transfer length of 100m via twisted pair Cat. 5 with a 10/100 Mbit/s transfer rate SC Duplex ports provide a transfer speed of 100 Mbits/s with a range of 2KM (Multimode) and 15KM (Single Mode) Energy-efficient Ethernet greatly reduces consumption Non-Blocking full Ethernet Switching architecture, in accordance with IEEE 802.3 Auto-Negotiation, auto-polarity and auto-MDI(X) provide the user with a plug & play solution Supports extra-long Ethernet frames (Jumbo frames) Fibre-optic (SC Duplex) configuration options available Can support both 24/48V DC power supplies Commercial temperature range of 0C to +55C, industrial temperature range of -40C to +70C Reverse polarity & surge protection Anodised Aluminium housing with powder-coated steel sheet Optimised DIN rail bracket for a secure installation Specifications: RJ45 Ports: 5 Transmission Speed: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s Transmission Length: 100m Mounting: DIN Rail Nominal Supply Voltage: 54V dc Dimensions: 25 x 107.5 x 142mm Maximum Operating Temperature: +70C Maximum Supply Voltage: 60V dc Minimum Operating Temperature: -40C Minimum Supply Voltage: 9V dc
