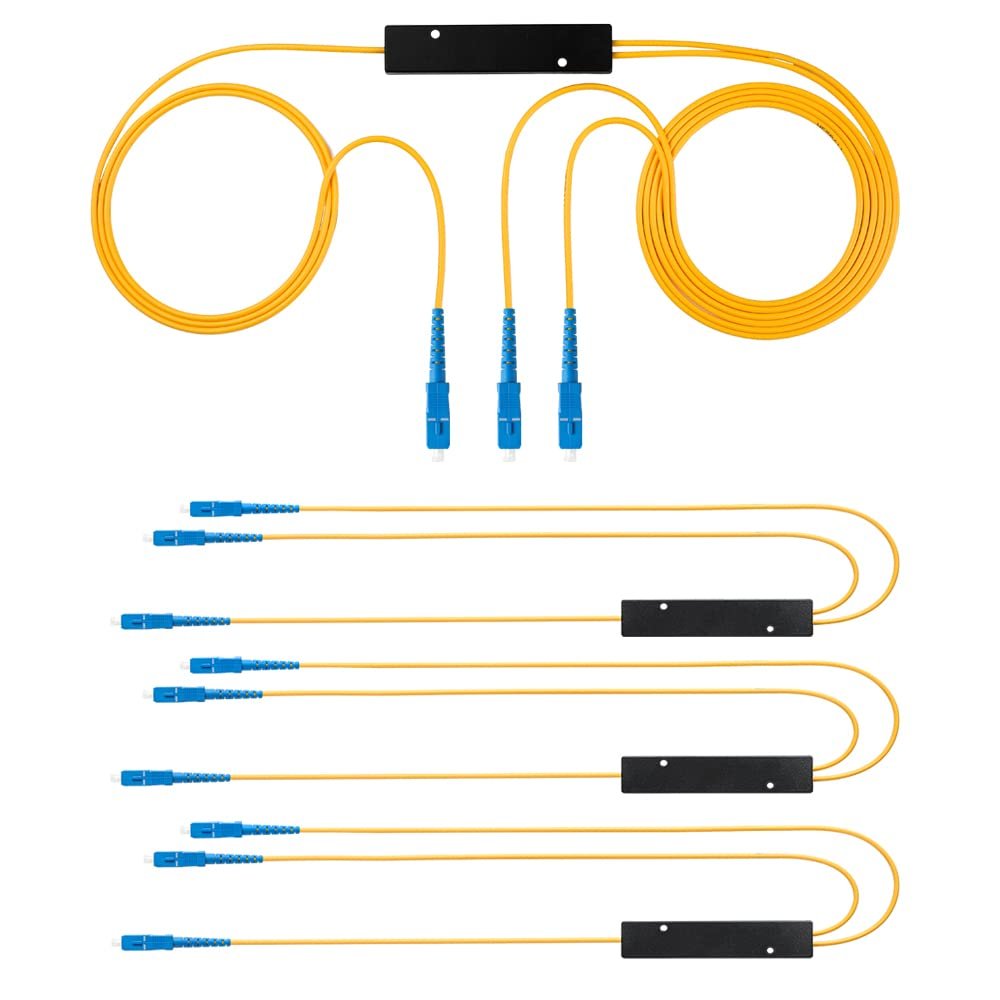

GwliUni 4PCS Fiber Optic Cable Splitter with 1 to 2 Distribution Channel 50:50 Ratio Wiring Coupler for GPON,FTTH,CATV System (SC-UPC 1 to 2)

Description

• Main Parameter1 to 2 Fiber optical splitter with SC-UPC plug, Ratio 50:50, 1310nm / 1550nm operate wavelength, -30 to +80C operate temperature ranges
• Uniform Distribution The SC splitter distribution ratio is 50 : 50, which distributes signals evenly to each user with strong directionality, uniform distribution and stable transmission.
• ABS Shell ABS shell has good capacity to resist impact, heat and low temperature, which can much extend the service life of the product.
• PVC SheathThe fiber sheath of splitter uses environmental protection PVC material and has strong flame retardant
• Low Insertion Loss and Good DirectivityThe splitter uses a high-quality ceramics core with low insertion loss(loss3.5db) and Directivity55dB

Product Description
-All the data were tested with high-precision instruments.
-The products are compact with beautiful appearance. It's spectral uniformity is ideal for passive optical network.
- The loss is insensitive to light wavelength and can meet the transmission needs of different wavelength.

Product Detail
Product Type1:2 SC-UPC Splitter
Splitter Ratio: 50:50
Insertion loss (db)(max):3.5
Uniformity (db):0.4
Polarization-related loss(db):0.2
Directivity (db):55
Return loss(db):55
Wave-related loss(db):0.5
Degree-related loss(db):0.5
Operate temperature:-30-80C
Storage temperature:-40-85C

Note: All the datas didnt count the loss of fiber optic connectors.
