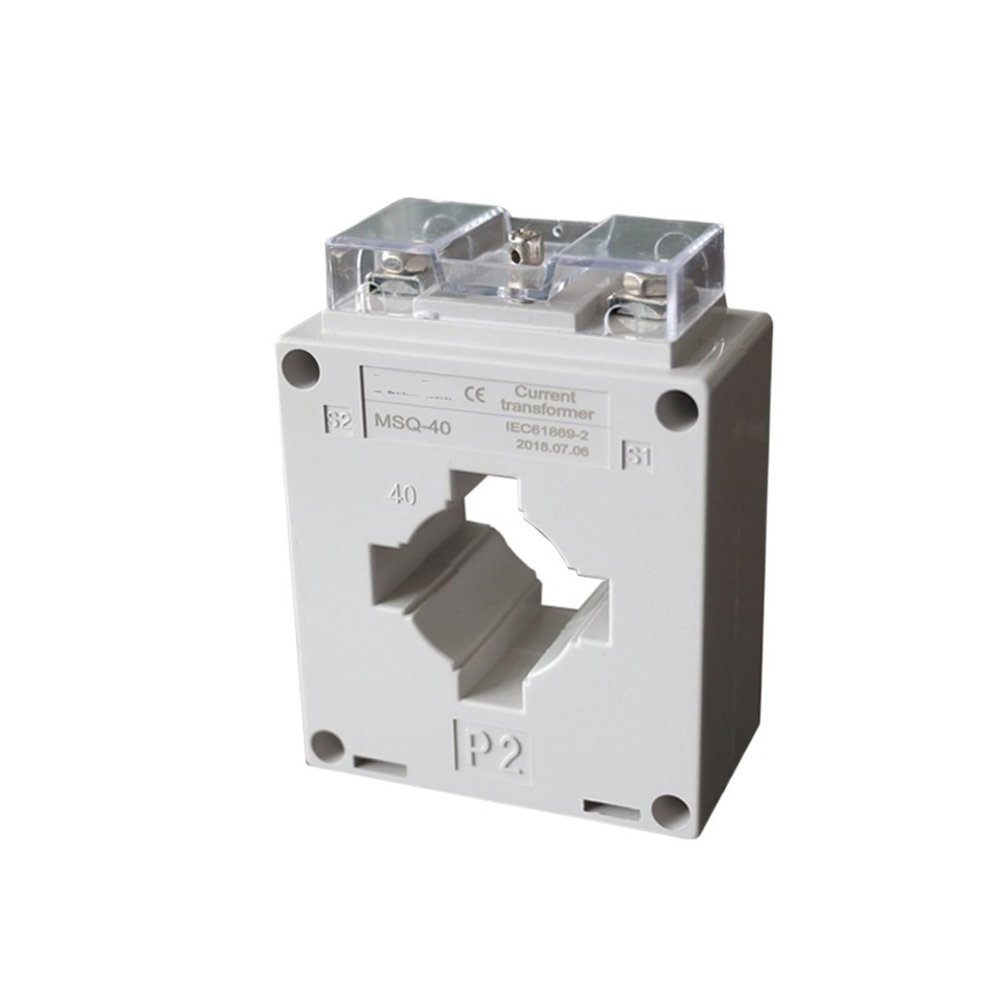

GVMUKNYE Metering Low Voltage Current Transformer MSQ-40 150/5A Ct(600A)

Description

• Isolation Transformers

Isolation Transformers
MSQ-40 150/5A Current Transformer

This series of CT is suitable for AC circuits with rated voltage below 720V and frequency of 50-60Hz. It can test, control, display and record the operation of electrical equipment and protect the equipment from damage. This product can also be used as a supporting transformer for mining
The products comply with VDE 0414, BS7626 and IEC 44-1 standards.

Specification

1.MSQ-30 (small) low voltage current transformer
2. Busbar hole size 30x10mm
3. Used for electric energy meter

Technical data:

The current transformers are manufactured according to IEC-185 standard.

Accuracy level: 1.0 (see table)

Rated voltage: 600V (see table)

Rated secondary current 5A (or 1A as required)

Safety factor: FS5

Operating temperature range: -20~+45

ABS shell, fully enclosed, built-in cover, secondary side iron plate multi-ampere output

Fixing metal casing - 2 pieces - 1, Iron rod and screws to fix copper strips - 3 pieces.

Current transformer technical features:

type
Current ratio(A)
Rated power(VA)
Rated
Level: 0.5
Grade 1
Frequency (Hz)
MSQ-40
100/5
-
5
50/60
150/5
-
5
50/60
200/5
5
5
50/60
250/5
5
5
50/60
300/5
5
5
50/60
400/5
5
5
50/60
500/5
5
10
50/60
600/5
5
10
50/60

Product appearance
