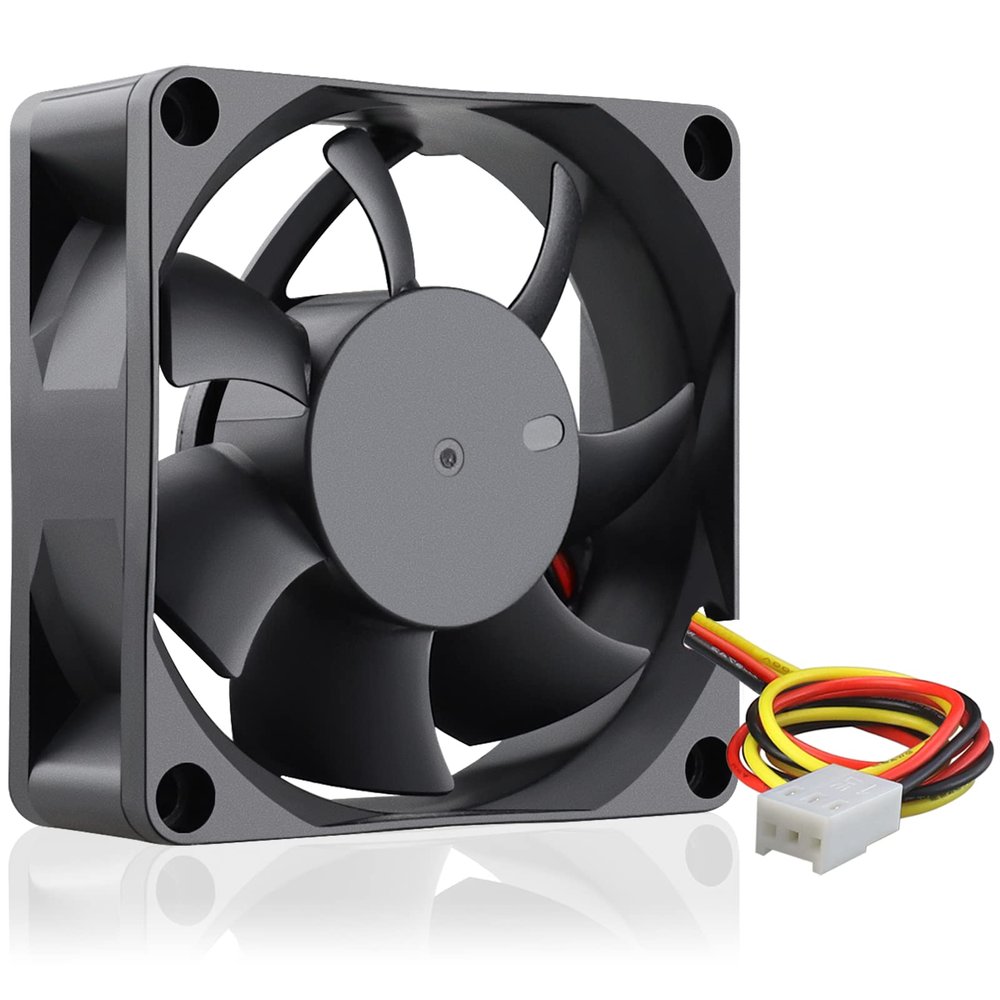

GDSTIME 12V DC 3PIN 70mm Fan, 70mm x 70mm x 25mm Brushless Cooling Fan

Description

• Wide Applications:Perfect for CPU coolers, heatsinks, motherboard chipset, pc case cooling and DIY projects; Ideal 70mm replacement fans in projectors, computer and other electronic devices and components
• FG Signal: 3-Pin power connector; The wires are for +12V power (red wire), ground - (black wire), and FG signal or measures Speed (yellow wire); power cord length 9.84 in.
• Easy Install: The fan can be mounted to be either an intake or exhaust, 61.5 mm Hole Pitch, simply mount it to the case pointing in the desired direction; Operating Temp.: 14 to 167
• Brushless Motor: 70x70x25 mm, 12V, 0.16A, 3000 RPM, max. 31 dBA, 38 CFM, 0.15 In H2O; Operating Voltage: 7 to 13.5V DC; contains Hydraulic Bearing rated up to 40,000hrs for superior cooling performance
• In the Box: Includes a 70mm 12v fan 3 pin, one 7cm fan grill, screws set

Product Description
This 25mm thick 70mm Black Case fan for superior cooling performance. The fan's housing and Its impeller and blades are molded with PBT plastic which have a high resistance to flammability. Brushless motors contains pure copper coil that have a higher resistance to heat. Containing long life hydraulic bearing, the fans can be run up to 40,000 hours. The fan rotates at speed of 3000 RPM and generates airflow of 38 CFM, and Static pressure of 0.15 In H2O, noise level 31 dBA max.
It comes with a 3-pin connector, The wires are for +12V power (red wire), ground - (black wire), and FG signal (Tach signal) or measures Speed (yellow wire); All of these wires work together to regulate fan speed, performance, and PC cooling. When connecting a three wire fan to a four pin fan header, the fan is always on; there is no fan control.
Edge to edge size is 70mm x 70mm; hole to hole distance is 61.5mm x 61.5mm; The fan can be mounted to be either an intake or exhaust, simply mount it to the case pointing in the desired direction; Also includes one 70mm metal fan guard and a mounting screw set. The GDSTIME axial fan are CE and RoHS certified.
Applications
This 3 pin 70mm 12v fan can be used as a 70mm CPU fan, Case fan or for cooling other devices and components. Popular uses include CPU coolers, heatsinks, motherboard chipset, pc case, and DIY projects. Because this is a standard size fan, it also can be used as a ideal 70mm fan replacement in projectors, computers and other electronic devices and components.
