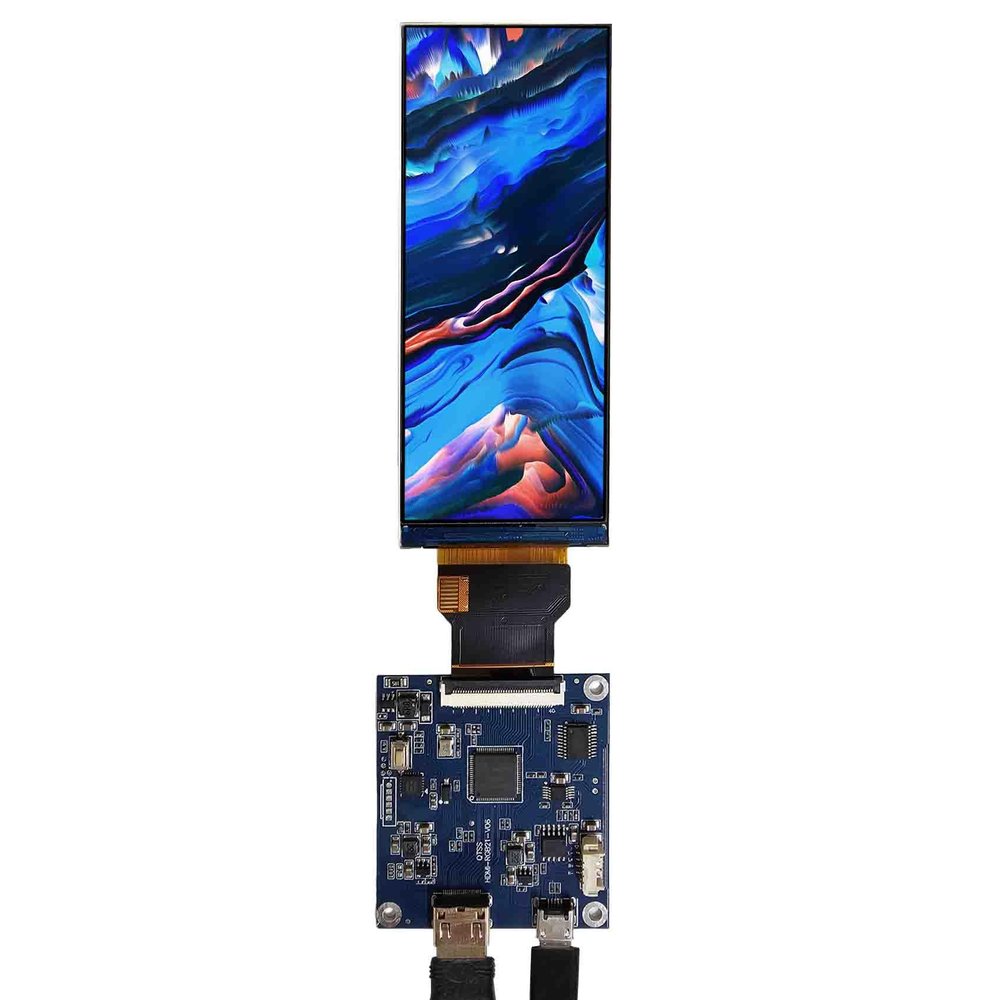

FanyiTek 3.99" 3.99 inch 400x960 450nit Mini IPS MIPI LCD Screen and Micro USB Control Board 41 pins

Description

• Square MIPI screenIPS full viewing angle,Great resolution 400x960 ,outline size:42.5102.082(HVD)mm,display area:39.18 94.03(HV)mm,450nit high brightness ,WLED backlight ,input voltage: 1.8/3.3 V .
• Micro controller boardVideo input :port ,board size: 50mm x 45mm x 5mm,pls use it in insulated environment.
• Input Power5Vdc More than 0.5A,Pls prepare it seperately .
• Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
• Packing lists1 LCD Controller Board VS-RGB21-V06,13.99inch 400X960 VS399001C40 Bar LCD Screen

LCD Controller Board:
Input Power Adapter: 5Vdc More than 0.5A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: Micro H/D
Board Size: 55mm x 45mm x 4.5mm

3.99" VS399001C40 400x960 Bar LCD Screen
Display New Mode2, Normally Black, Transmissive
Resolution 400(RGB)960
Outline Size 42.5102.082 (HVD)mm
Display Area 39.18 94.03 (HV)mm
Brightness 450 cd/m (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR10) [Left / Right / Up / Down]
Interface MIPI, 40 pins ,FPC
Backlight WLED
Input Voltage 1.8/3.3 V (Typ.)

Packing list :
1 LCD Controller Board
13.99inch 400X960 VS399001C40 Bar LCD Screen
