Description
- Variable Input Voltage: Operates within a wide range of 2V to 45V, providing flexibility in various applications
- Output Current: Regulated at 20mA, ensuring consistent performance and longevity of LEDs
- Dimensions: Compact size of 0.62 x 0.22 x 0.11 inches, allowing for easy integration into any circuit design
- Temperature Range: Withstands extreme temperatures from -55C to +150C, demonstrating robustness and reliability in various environments
- Flexible Design: Includes plated-through holes that can be soldered to directly, or pins can be installed for use with a breadboard or soldered into a Printed Circuit Board (PCB)

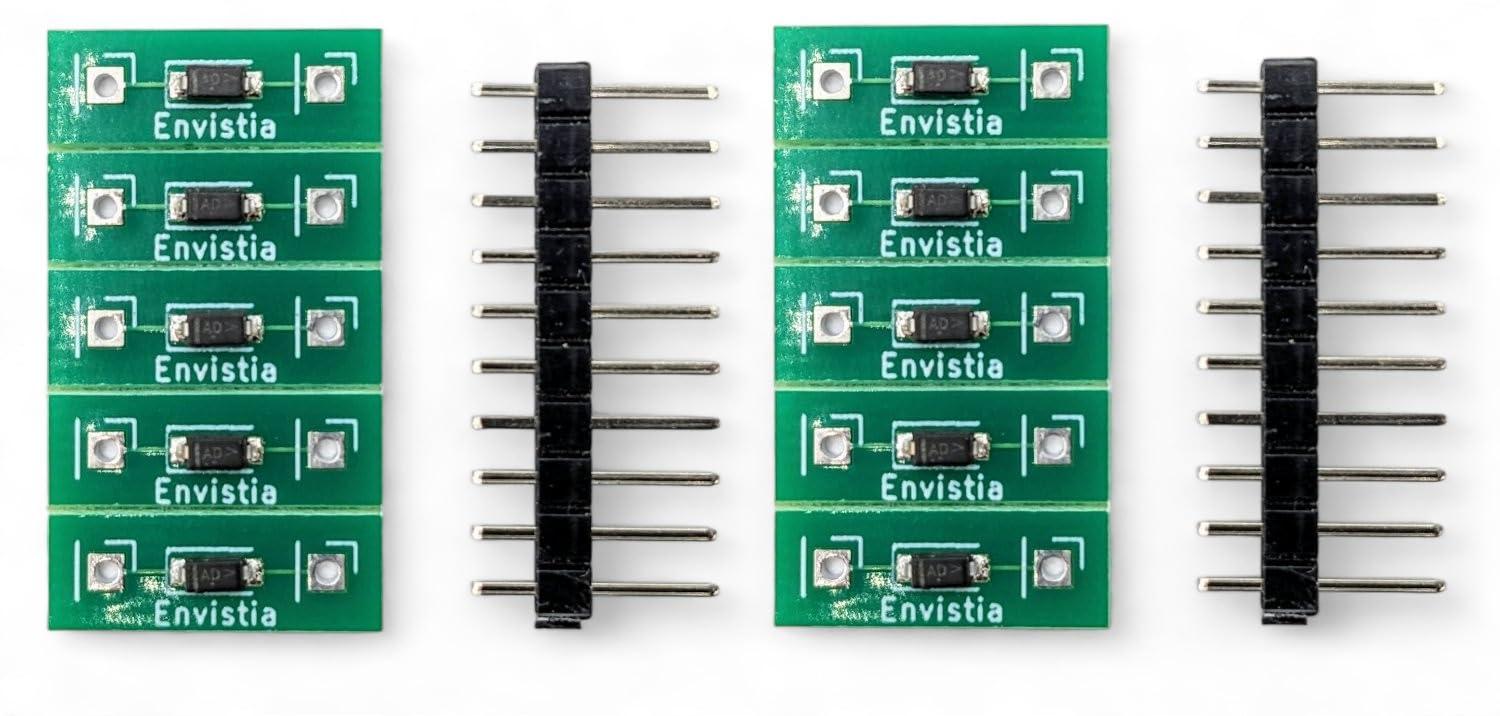

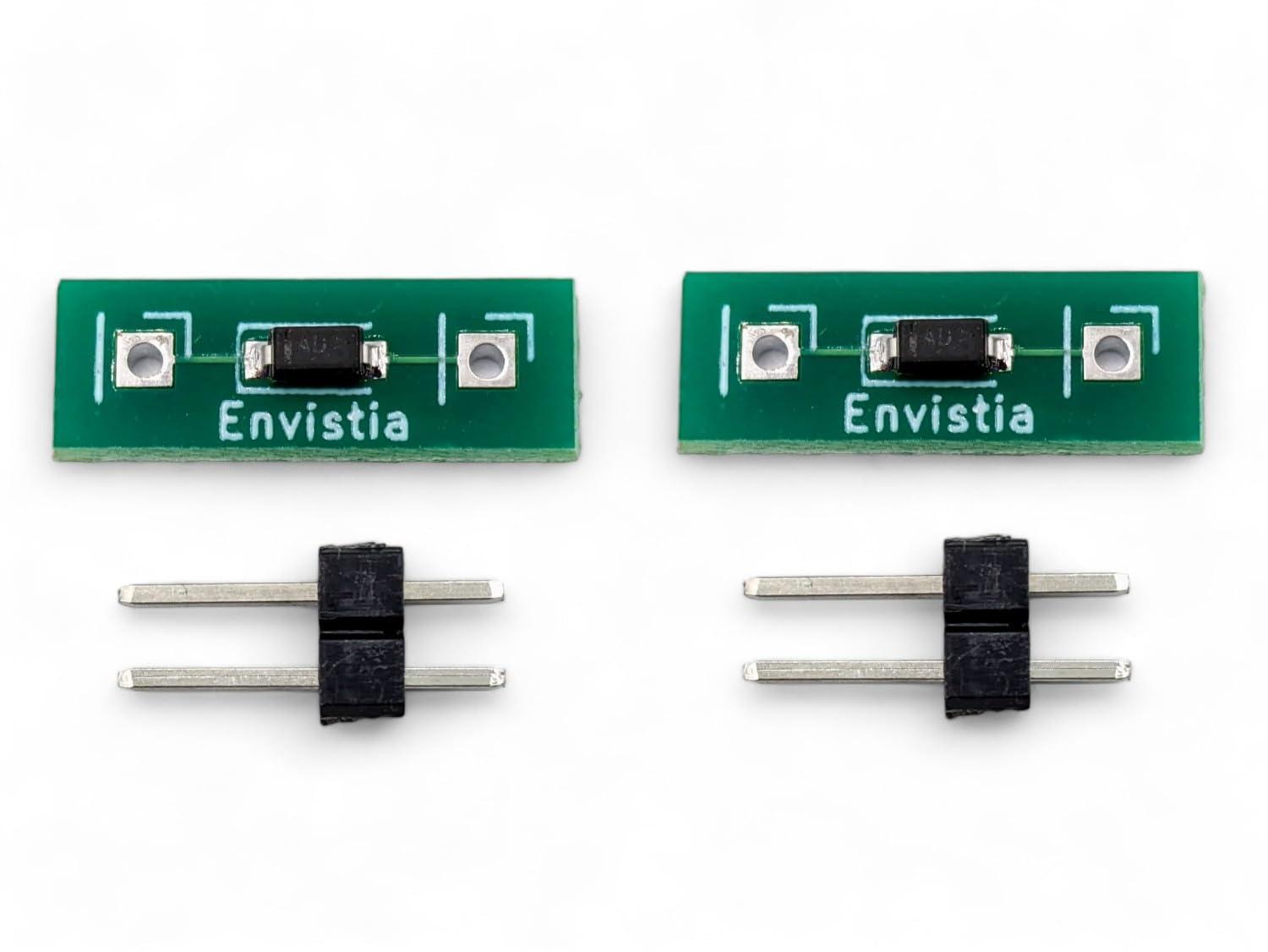

The Envistia 20mA LED Driver is a compact and reliable power supply solution, designed to eliminate the complexities of powering LEDs. With dimensions of 0.62 L x 0.22 W x 0.11 H inches (15.75mm x 5.6mm x 2.8mm), excluding pins, it's perfect for various applications. This driver features a constant current source of 20mA (+/- 2mA), ensuring stable LED performance. It supports an input voltage range of 2V to 45V and a recommended maximum input voltage of 20V. The pin-to-pin spacing is 0.4 inches (10.16mm), and the voltage overhead is 1.8V. The module operates within a wide temperature range of -55C to +150C. Ideal for automotive uses, this driver guarantees a consistent 20mA supply to your LED, regardless of battery voltage spikes, sags, or fluctuations.
