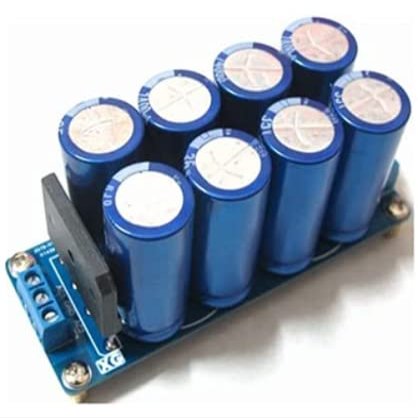

YIHEINFOR Dual Power Rectifier Filter Board Multi-Capacitor Parallel Audio Amplifier Power Board 8 * 7400UF

Description

• Standard 8 x 7400UF 35V ELNARJD Series Capacitors
• Rectifier Bridge 25A600V
• Maximum Input Voltage: Dual AC 24V
• The small capacitor mounting hole distance is 0.2 inch (5 mm) (capacitors can be installed with a maximum diameter of 0.7 inch (18 mm)), and the large capacitor mounting hole distance is 0.4 inch (10 mm) (capacitors can be installed at a maximum diameter of 1.4 inch (35 mm))

The size of the board is shown in the picture above. The height of the main capacitor is 40MM
Standard 8 x 7400UF 35V ELNARJD Series Capacitors
Rectifier Bridge 25A600V
Suitable for front and rear rectifier and filter power supplies. Note: Dual power supply
Maximum Input Voltage: Dual AC 24V
3-wire input and output dual power supply See diagram below. The small capacitor mounting hole distance is 0.2 inch (5 mm) (capacitors can be installed with a maximum diameter of 0.7 inch (18 mm)), and the large capacitor mounting hole distance is 0.4 inch (10 mm) (capacitors can be installed at a maximum diameter of 1.4 inch (35 mm)).
***The advantage of this product, dual power circuit design, each group of voltage (one group for positive power, one group for negative power) is filtered by 7400UF * 4 capacitors (actually, 7400UF capacity). This is higher than two large capacitors in 15000UF Benefits, the internal resistance of parallel large capacitors is low, and the sound quality is relatively clear and clear.
