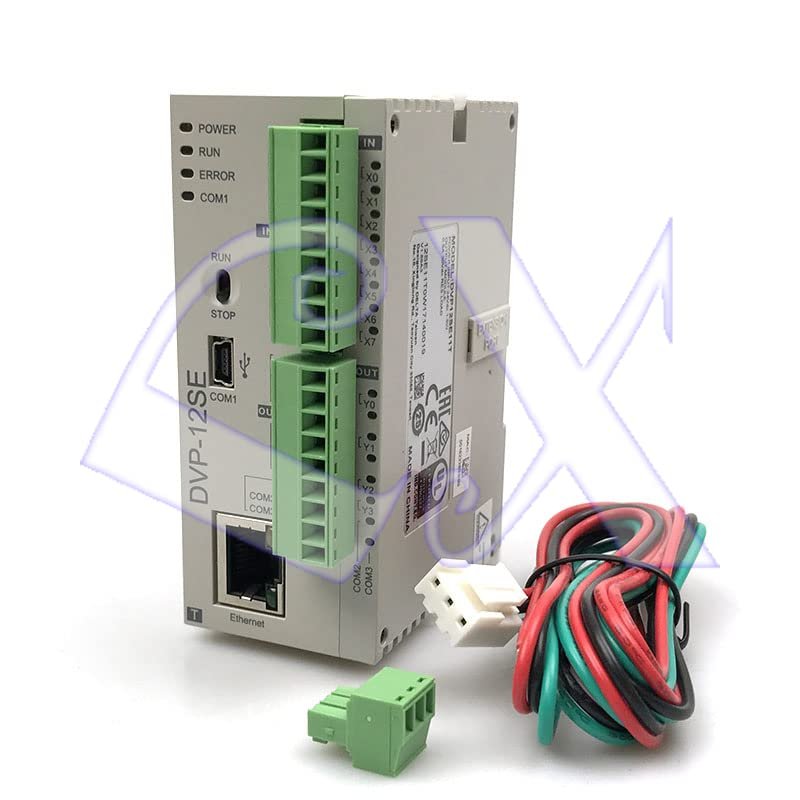

Davitu Motor Controller - Delta Original Full SE series PLC programmable controller DVP12SE11R 8DI 4DO 3 COM Mini USB/RS485x2/Ethernet Relay output

Description

• Model number: DVP12SE11R
• Motor type: Stepper Motor

Features
*The most complete network type slim PLC in the industry
*Provides 8 digital inputs and 4 digital outputs
*Built-in mini USB, Ethernet, and 2 RS-485 ports
Specifications:
*Program capacity: 16k steps
Data register: 12k words
*Higher execution speed compared to the competition: LD: 0.64s, MOV: 2s
*Built-in Ethernet supports MODBUS TCP and Ethernet/IP
*IP Filter function is a firewall that offers the first line of
defense and provides protection from malware and network threats
*Supports DVP-S series left-side and right-side modules
*No battery required. Maintenance-free.
(Real time clock operates for 15 days after power off)
Model
Item
DVP12SE11R
DVP12SE11T
Power supply voltage
24 VDC (-15 to 20%)
(with counter-connection protection on the polarity of DC input power)
DVPPS01/PS02: input 100 to 240 VAC, output 24 VDC/1A (PS02: 2A)
Connector
European standard removable terminal block (Pin pitch: 3.5mm)
Operation
Maximum power loss time is 10ms or less.
Inrush current
Max. 7.5 A@24 VDC, I2t = 0.25 A2S
Fuse capacity
2.5 A/30 VDC, Polyswitch
Power consumption
1.8W
1.5W
Power protection
With counter-connection protection on the polarity of DC input power
Insulation resistance
> 5 M Ohm (all I/O point-to-ground: 500 VDC)
Noise immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,
Analog & Communication I/O: 1kV
RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Grounding
The diameter of grounding wire cannot be smaller than the wire
diameter of terminals L and N (All DVP units should be grounded
directly to the ground pole).
Operation / storage
Operation: 0 to 55C (temp.), 50 to 95% (humidity), Pollution degree 2
Storage: -25 to 70
