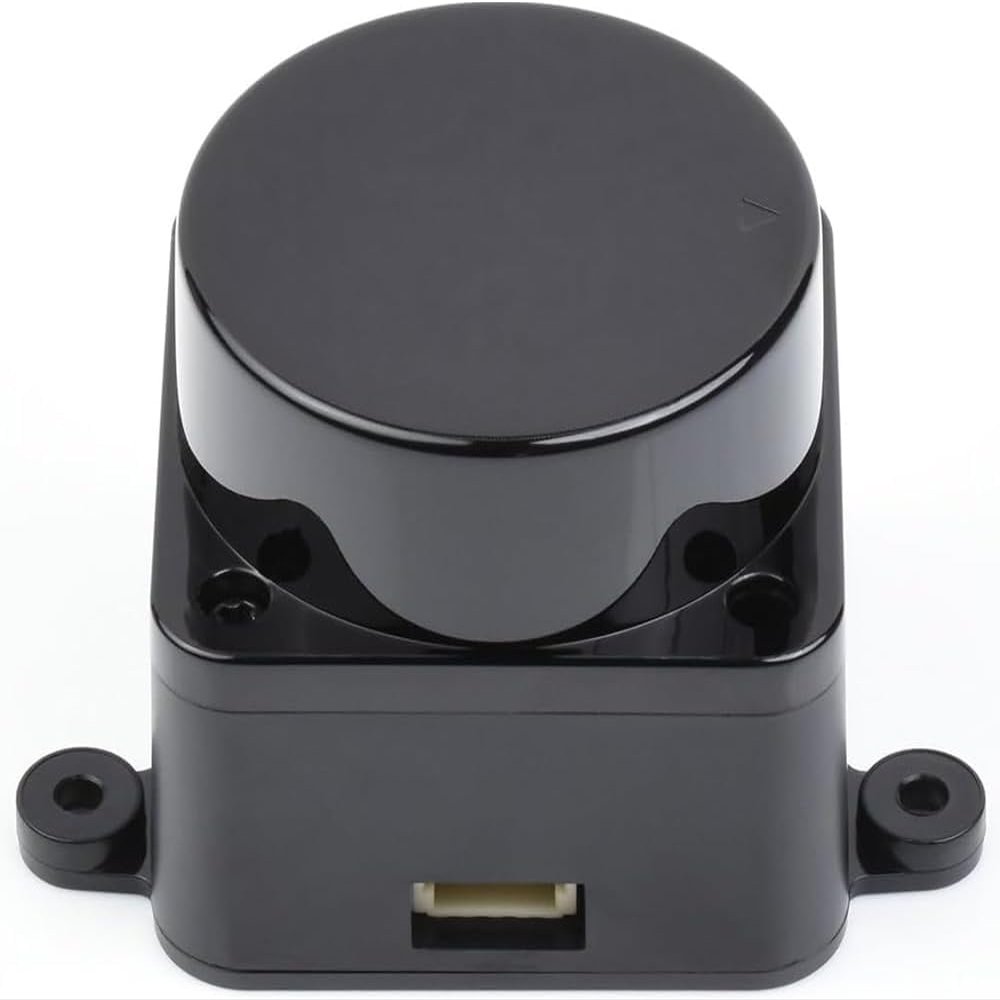

TUOPUONE D500 Developer Kit, DTOF Laser Ranging Sensor, 12m Ranging Radius, 360 Omni-Directional Lidar, UART Bus, Anti-Strong Light Interference (D500 LiDAR Kit)

Description

• Adopting DTOF (Direct Time of Fight) ranging technology, measuring distance according to the time-of-flight of the laser pulse, within the effective detection distance of 12m, the radar ranging accuracy will not change with the distance, and can reach the measurement accuracy of 30 mm. With efficient algorithm logic to achieve 360 degrees detection of robot, autonomous mapping, and obstacle detection.
• Brushless Motor, Quiet Without Friction, The Lifetime Can Reach 10000+ Hours
• Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the, surrounding environment and the point cloud information of the location of obstacles
• 12m Ranging Radius, Ensuring The Large-Area Cruising And Mapping Capabilities Of Robots
• Rigorous optical design and powerful chip can effectively avoid strong light interference, and can resist the strong light environment of 60000Lux, which can achieve indoors and outdoors high-frequency and high-precision distance measurement and accurate mapping

D500 Developer Kit, DTOF Laser Ranging Sensor, 360 Omni-Directional Lidar, UART Bus

Specifications
RANGING DISTANCE: 0.03 ~ 12.00m
RANGING AVERAGE ACCURACY: 10 mm (within 0.3 ~ 0.5m) / 20mm (within 0.5 ~ 2m) / 30mm (within 2 ~ 12m)
SCANNING FREQUENCY: 6 ~ 13Hz (Typ 10Hz)
SCANNING ANGLE: 360
RANGING FREQUENCY: 5000Hz
WAVELENGTH: 895 ~ 915 nm (Typ 905)
COMMUNICATION INTERFACE: UART @230400
AMBIENT LIGHT TOLERANCE: 60KLux
POWER SUPPLY: 5V
POWER CONSUMPTION: 1.45W
OPERATING CURRENT: 290mA
WEIGHT: 45g
OPERATING TEMPERATURE: -10 ~ 45C
LIFETIME: 10000+ hours
DIMENSIONS(L W H): 54.00 46.29 35.00mm

Applications:
1. Service Robot
2. Drone
3. Shelf Visit Frequency
4. Quadruped Robot
5. Indoor Sports Platform
6. Smart Speaker / Camera
7. Educational Development
8. Multi Touch
9. Mapping & Modeling

PACKAGE CONTENT
1. D500 LiDAR Kit x1
2. Adapter x1
3. USB Type A to Micro USB cable ~20cm x1
4. 4pin cable ~100mm x1
