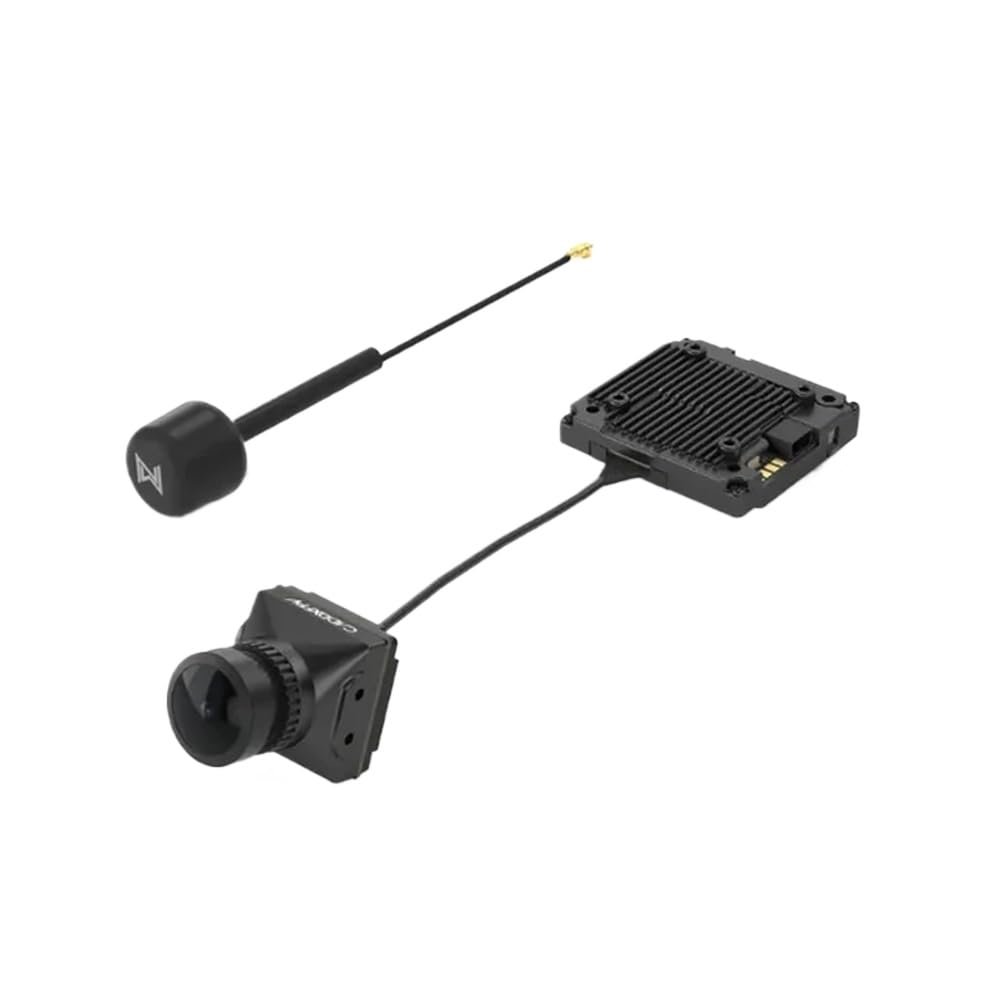

CUIPPWRJ Walksnail Avatar HD V2 1080P HD Camera 160 Degree FOV Compatible Compatible with Racing 8G Without Gyroflow Or 32G with Gyroflow(HD Pro kit 32G)

Description

• Model: Walksnail Avatar HD V2 designed Compatible with racing.
• Resolution: Features stunning 1080P HD video Compatible with clear, vibrant imagery.
• Field of View: Enjoy an expansive 160 field of view Compatible with immersive experiences.
• Storage Options: Available in 8G without Gyroflow or 32G with Gyroflow Compatible with more flexibility.
• Compatibility: suits various racing drones Compatible with enhanced performance.

Please note.
Avatar HD V2 8G version Without Gyroflow
Avatar HD V2 32G versionWithout Gyroflow
Camera V2 Only version with Gyroflow support, including 14cm coaxial
Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgradeis around the corner.
Specification:
Camera
Model
Avatar V2 camera
Image Sensor
1/3.2-Inch 4Mp 4:3sensor
Resolution
1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
Ratio
4:3 native /16:9
Lens
2.1mm
FOV
160
Aperture
F2.0
Shutter
Rolling shutter
Min.Illumination
0.001Lux
Weight
7.2g
Dimensions
19*19*22mm
Coaxial
140mm
Gyroflow
supported/ non-supported, two version
VTX
Model
Avatar V2 module
Communication Frequency
5.725-5.850GHz
Transmitter Power (EIRP)
FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O Interface
JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes
25.5*25.5mm; 20*20mm
Dimensions
33.5*33.5*10.5mm
Storage
8G/32G
Recording
1080p/720p
Weight
17.6g
Operating Temperature
-20-40
Channels
8
Wide Power Input
6V-25.2V
Supported FC System
Betaflight; Inav; Fettec; ArduPilot; Kiss
OSD
Canvas mode
Latency
Average delay 22ms
1(IPEX)
Avatar V2
Polarization
LHCP
Bandwidth
5600MHz-6000MHz
Gain
1.9dBi
VSWR
1.5
Input Impedance
50
Interface
IPEX-1
Size
R15 X 45mm (without )
Weight
2g
Packing List
USB transfer extension
X1
4 Pin
X1
M2*4mm screws
X8
M2*5mm screws
X4
M2*6mm screws
X4
M2*14mm screws
X4
M2*5*0.5mm gasket
X4
Bullet Point Compatible with Camera
2K pixel, 120fps, 4:3 native sensor
Support Gyroflow
1080P HD
